Peanut coating machine is also called as sugar coating pan. It is used widely in snack food processing industry. This machine is equipped with stepless speed regulating device, and it by motor through the triangle belt driving worm wheel,worm, driving suger coating pan rotating , driving under the influence of the centrifugal force, make the material rolling friction in the pot, achieve coated with sugar mixture, and making pill,and polishing effect. The peanut coater machine can produce skin peanuts, korea bean,chocolate peanuts, beans, mouthful of fragrant etc. This equipment can also make Tang Yuan, so we also call it as Tangyuan machine.
Specifications:
Type |
Dimension(mm) |
Power(KW) |
Output(kg/time) |
GYJ-IV 1200 |
1330*1300*1700 |
1.5 |
25-30 |
GYJ-IV 1400 |
1850*1750*2000 |
1.5 |
35-50 |

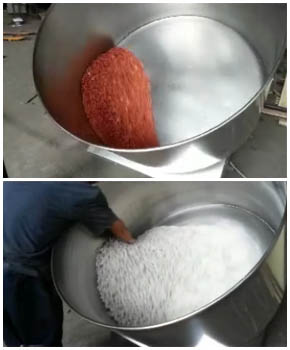

Working video coating machine
Features of peanut coating pan machine:
1. The character of automatic peanut coating machine is the tilting angle of the coating pot is 30 degree. An electric or gas oven or other heating equipment can be put under the coating pot.
2. There is an electric blower equipped with the machine. The air tube in the pot can blow hot or cold air for different processing stage. The heating degree is adjustable.
3. It can be used for sugar coating of different shapes food such as diamond, square and etc. as well as chocolate coating of peanuts.
The peanut coating pan can produce skin peanuts, Korea bean,chocolate peanuts, beans, mouthful of fragrant etc.
Working principle of peanut coating machine:
The equipment is composed of rolling pot, machine frame, transmitting system and heating system. The shape of the machine is more suitable for coating of non-circular material or high viscosity material.The cooperation of motor and reducer will reduce the processing speed to easy operation state. The heating system is composed of direct heating and hot air heating. You can use them separately according to different requirement.

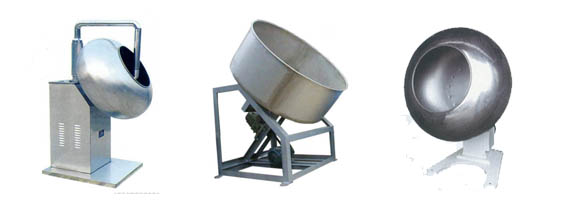

Coating pans for candy manufacturers and food processors
coating pans, metal spinning, metal casting, metal forming, stainless steel coating pan are easy to maintain, adaptable and built to quality specifications to ensure years of trouble free operation.
