Peanut Roasting Machine,Roaster Groundnut Roasting Machine
Kinds of peanut roasting machine quality products and service !

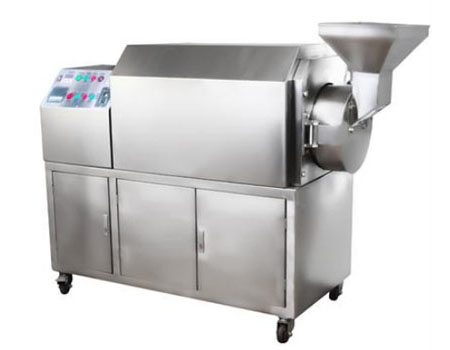

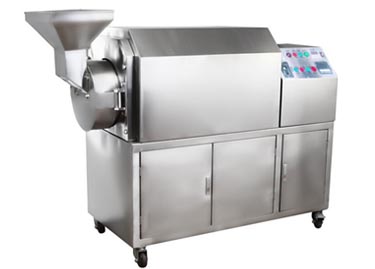

KZ Peanut roasting machine

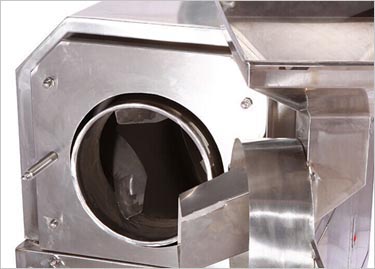

The peanut roasting machine record temperature continuously, adopts heat conduction and thermal radiation theory. The baked materials are not in contact with flames and smoke, scroll uninterruptedly pushed by screw panel inside the drum, to be heated evenly. Normally the temperature is controlled in 160-230°C in the seeds frying process and the temperature depends on the materials being roasted.

Peanut Roasting MachineRoasted Nuts

Model:KH-100D
Dimension(mm):1650*730*1250
Heating type:Electricity
Power:0.18KW+13KW
220V,60HZ,single phase
Capacity:30-50kg/time
Weight:100kg
Thickness of pan plate:3mm
Texture of material:all stainless steel

Features of peanut roasting machine
Features of peanut roaster for sale: 1. Automatic control operation, saving the cost of production.
2. Use the high quality heating tube, service life is more than 3-5 years.
3. Good insulation design,Saving electric energy,keep in high yield.
4. Small volume. Advanced electric heating mode.
5. The roasting and cooling are separate. Perfect for continuous operation.

Commercial peanut roasting machine for sale with attractive price and quality. Welcome customers all over the world to consult, negotiate and order!

Operation Methods
1, Gas/coal Heating
1,Please check the circuit junctions and insulation condition first
2,Fix the low pressure valve onto the gas tank and connect the soft tube for supplying gas. Then connect power.
3,Revolving take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the power switch fist and then open gas tank and fire. Then the roasting starts.
4,After finishing roasting, close the gas valve and turn off electricity. Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
5,Close the gas source and cut off power then the operator can leave.

2 , Electricity Heating
1,Please check the circuit junctions and insulation condition first

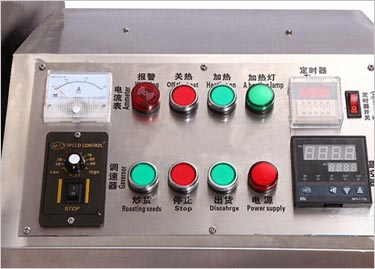

2,Revovling take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the motor switch frist and then open the heating switch and preset the temperature and start roasting. The temperature controller can set the heating temperature.
3,After finishing roasting, turn off heating and motor switch orderly . Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
4,Cut off power source then the operator can leave.

Precautions
1,Check the connections and valve will not leak for the gas heating type and ensure no heating source or danger around the gas tank. Cut off the gas source after finishing work.
2,When the motor switch is in the clockwise (reverse) condition, first dial it to the stop position and wait for 2 seconds then make it to the reverse(clockwise) position, in order to ensure the motor’s service life.
3,The ball bearing need be lubricated every half a month and reduction gearbox every half a year.
