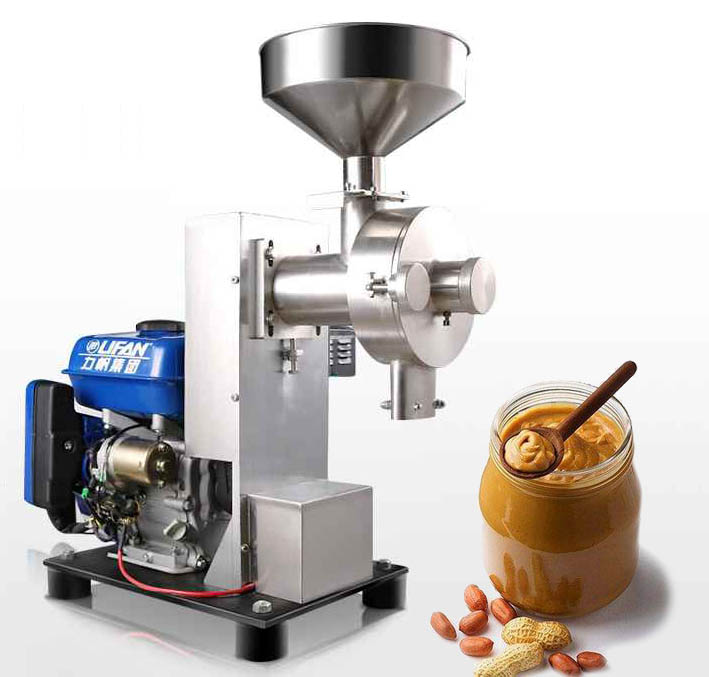

The gas engine peanut butter machine is developed by our company to meet the needs of market diversification. It is suitable for liquidity operations. The rotation shaft of grinding head is driven by the engine directly, which avoid the phenomenon of skidding by the use of belt drive. In addition, the peanut butter machine adopts non-thermal material in the position of machine head and engine connection that heat does not transfer to the machine head when the engine is hot. (the machine head is moderately heated in the grinding process, which is caused by the friction heating phenomenon caused by the high-speed operation of the rotor and stator.)
Technical data of peanut butter machine
Model: KMGR-G20
Capacity: 20-40 Kg/Hour
Engine Horsepower: 7 HP
Wheel Size: Dia. 200 MM
Size: 560*410*580 MM
Speed: 1400RPM
Application of peanut butter machine
The gas engine peanut butter machine can be used to mill a variety of food, Chinese medicine into uniform powder and butter of 50~200meshes.
Grain - sesame, walnut, rice, black rice, soybean, mung bean, peanut, lotus seed, corn, sorghum, barley, buckwheat, oats, etc.
Medicinal materials - almond, tuckahoe, jujube, semen euryferae, Chinese wolfberry, coix seed, hawthorn, Chinese yam, fleece-flower root, red bean, frankincense, cuscuta, angelica, codonopsis, astragalus, etc.
Chemicals - soft ores without corrosion.
Working principle of penaut butter machine:
The gas engine peanut butter machine grinds materials into powder and paste by means of two grooves. It adopts continuous feeding operation, simple and easy structure, easy operation, fine grinding and smooth discharge.
The gas engine peanut butter machine adopts the gasoline engine transmission. It does not need to be connected to the power supply. By controlling the engine throttle and adjusting the speed of the engine, the machine can grind the material into powder and paste.
Advantages of gas engine peanut butter machine
1. The machine body is made of high-quality 304 stainless steel casting and precision machining, never rusting, in line with GMP requirements.
2. 3-4 strong magnets are used to absorb the iron powder worn by the grinding plate during the operation of peanut butter machine, which is clean and hygienic; there is no need to apply lubricating oil (grease) in the grinding chamber of the machine, which would not cause pollution to the processed materials, ensuring the safety and health of food and medicine.
3. The processing technology of machine parts and assembly process are improved with low noise, smooth and faster feeding, no blocking, fine grinding, no dust.
4. Continuous feeding production with high efficiency.
5. Simple and convenient operation.
(1) It is easier and less laborious to adjust the grinding thickness when operating the machine.
(2) Less material remains in the grinding chamber.
(3) Feeding speed and discharge thickness can be adjusted.
